Roller ring finishing lathe

۸
1100000
收藏
  • Ʒ˵
  • Ʒ

1. This machine tool is specially used for the finish turning of outer cylinder surface, inner hole and end face of large roller ring parts.

2. The main drive is driven by AC variable frequency spindle servo motor, and the spindle speed can be adjusted steplessly.

3. The vertical and horizontal feed axis is driven by servo motor. Enter the feed rate through the touch screen. The operation is simple.

4. The machine bed adopts the integral three guide rail structure with strong rigidity. The guide rail is quenched by super audio frequency and precision grinding, which is wear-resistant and durable.

5. Each guide rail is attached with guide rail belt and equipped with lubricating pump for lubrication.

6. The chuck adopts cast steel four jaw heavy precision equal height chuck.

7. It is equipped with special internal grinding head with power.

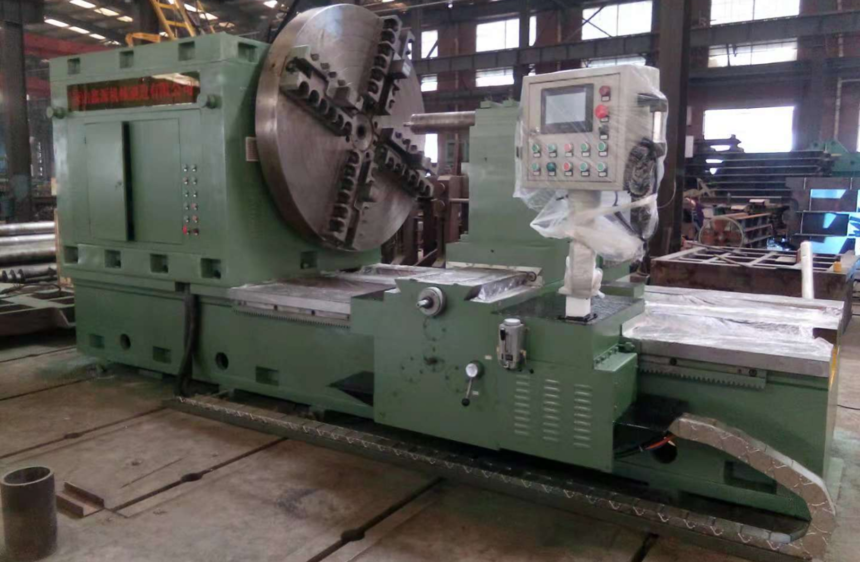

Finished roll ring



Processing operation


operation panel


Operation panel touch screen main operation interface

GH / 500 series roller ring finishing lathe

Main parameter model

GH1400

GH1600

GH1800

Maximum turning diameter on tool rest

mm

1400

1600

1800

Maximum workpiece length

mm

Five hundred

Five hundred

Five hundred

Maximum weight of workpiece between centers

Kg

five thousand

five thousand

five thousand

Spindle speed series


stepless

stepless

stepless

Spindle speed range

r/min

140

130

125

Spindle taper hole size

mm

Metric 80

Metric 80

Metric 80

Disc diameter

mm

1700

1800

2000

Main motor power

Kw

Thirty-seven

Thirty-seven

Thirty-seven

Servo motor torque

N.m

Fifty-six

Fifty-six

Fifty-six

Cross slide travel

mm

Nine hundred and fifty

1one thousand

one thousand

Cutter bed section

mm

120120

120120

120120

Lateral (x-axis) feed rate

mm/min

11000

11000

11000

Longitudinal (Z-axis) feed rate

mm/min

12000

12000

12000

Lateral (x-axis) fast

mm/min

one thousand and five hundred

one thousand and five hundred

one thousand and five hundred

Longitudinal (Z-axis) fast

mm/min

three thousand

three thousand

three thousand
